Sectional Screw Flights Sectional Screw Flights Sectional Screw Flights Sectional Screw Flights Sectional Screw Flights
Sectional Screw Flights
Sectional Screw Flights Sectional Screw Flights Sectional Screw Flights Sectional Screw Flights

Sectional Screw Flights

500 INR/Piece

Product Details:

  • Color Blue
  • Usage For Horizontal Screw Conveyors
  • Product Type Screw Flights
  • Condition New
  • Power Source Hydraulic
  • Voltage 380-480 Volt (v)
  • Feature Smooth surface finish
  • Click to View more
X

Sectional Screw Flights Price And Quantity

  • 500 INR/Piece
  • 1 Unit

Sectional Screw Flights Product Specifications

  • For Horizontal Screw Conveyors
  • Screw Flights
  • New
  • Durable
  • Smooth surface finish
  • 380-480 Volt (v)
  • Blue
  • Hydraulic

Sectional Screw Flights Trade Information

  • Cash Advance (CA) Cash in Advance (CID)
  • 10 Unit Per Day
  • 15-30 Days
  • Wooden Box and Corrugated Box
  • All India

Product Description

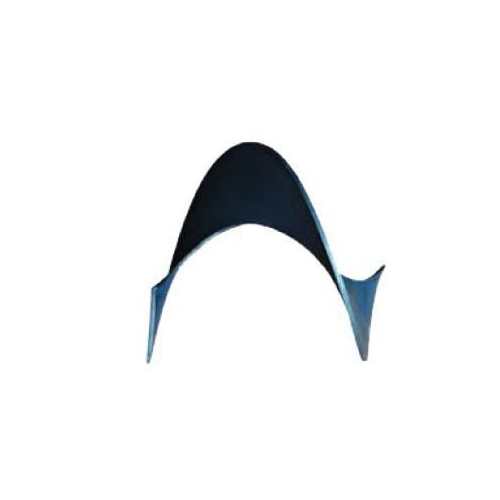

Sectional Screw Flights

We are one of the reliable Importer Distributor & Supplier of Sectional Screw Flights from Sidhpur (Gujarat). We use the finest grade metal to manufacture Sectional Screw Flights.

Material :

Carbon Steel, Low Alloy Steel, Stainless Steel

Features :

  • A single pitch construction with consistent cross sectional thickness between inner & outer edges
  • Every screw flight section is formed accurately up to the customers size.
  • A wide range of size up to 2000 mm in diameter, 40 mm in thickness, 1500 mm in pitch are available
  • Ribbon, Tapered & Variable Pitch Flights are available on application
  • Flights can also be hard faced or coated with wear protection materials
  • High precision and customized size can be made

Technical Specification :

Any Sectional screw flights with size coming in the range of the following table can be made

Technical Specifications

Pitch (MM)

Minimum Inner Diameter (MM)

Maximum Outer Diameter (MM)

Thickness (MM)

60-150

30

480

Carbon Steel < 50mm
Manganese Steel < 50mm
Stainless Steel < 40 mm

150-200

50

520

200-300

60

670

300-450

90

950

450-500

135

1150

500-650

150

1350

650-850

200

1400

850-950

250

1450

950-1200

300

1600

1200-1250

400

1800

1250-1300

450

2000
